Test system for the electronics industry 1230

precision

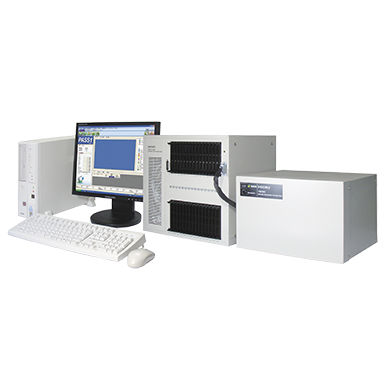

BARE BOARD HiTESTER 1230 All-In-One Solution for Testing the Reliability of Connections on Printed Circuit Boards Overview The 1230 is a bare board tester with the testing capabilities of an in-circuit tester, delivering highly consistent low-resistance measurements with high speed high precision. Key Features • Test boards with embedded passive and active devices (crystallizing Hioki’s expertise in populated board testers) • Guarding measurement • Phase division (optional AC measurement feature) • Test built-in LSIs (connection reliability testing, pin-to-pin open/short testing, current consumption [standby current] testing) • Graphical icons on user interface aid in intuitive operation Specifications overview Number of measurement channels - Max. 8,192 (max. 4,096 steps on top and max. 4,096 steps on bottom) *Using scanner box Number of test steps - Max. 10,000 steps Measurement times - Continuity testing: 350 μs Isolation measurement: From 5 ms Capacitance and inductance measurement: From 4 ms Resistance measurement: From 1.8 ms General specifications - Computer (Windows XP), 17” LCD monitor (standard accessories) High-speed advanced isolation and continuity testing 4-terminal measurement support (including mixed 2-terminal/4-terminal measurement)
