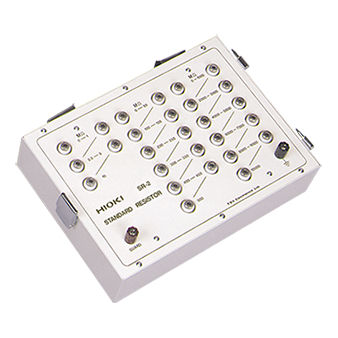

Standard resistor SR-2

precisioncalibration

STANDARD RESISTOR SR-2 24-Point, 1,000VDC, 1 M to 10,000 MΩ Calibration Box for Super Megohmmeters Overview Hioki Super Megohmmeters are high insulation resistance meters designed to measure the electrical resistance of insulation materials with high insulating properties. The SR-2 is for calibrating various types of super megohmmeters, consisting of 24 ultra-precision resistors encased in a sealed metal case. Each element can be connected on the terminal plate in various combinations as required. This is a resistor box for calibration of the super megohmmeters. Max. voltage is 1000 V DC and resistor value covers from 1 M to 10,000 MΩ in 24 points. Specifications Max. voltage - 1,000 V DC Resistor value - 1 M to 10,000 MΩ in 24 points Dimensions - 270mm (10.63in) W × 90mm (3.54in)H × 195mm (7.68in)D
