Measurement software ST9000

electricWindows

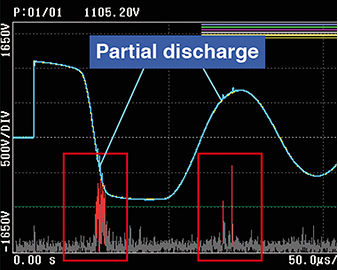

DISCHARGE DETECTION UPGRADE ST9000 Optional function for the ST4030 Impulse Winding Tester to detect microscopic partial discharges obscured by noise. Detect pseudo-shorts with high accuracy Overview The ST9000 Discharge Detection Upgrade for the ST4030 Impulse Winding Tester provides detection enhancements to spot discharge that is buried in noise. Key Features • - Option additional function for ST4030 • - Detect microscopic partial discharges obscured by noise to determine defective insulation (pseudo-shorts) • - HIOKI original filter * (*Noise components within the high frequency components appearing within the entire response waveform are removed to extract only the partial discharge component in order to make a pass/fail determination. Jointly developed with Aisin AW Co., Ltd.) • - Peripheral equipment (antenna for discharge detection etc.) not required to easily detect discharge Basic specifications Measurement functions - Determine discharge Compatible models - ST4030
