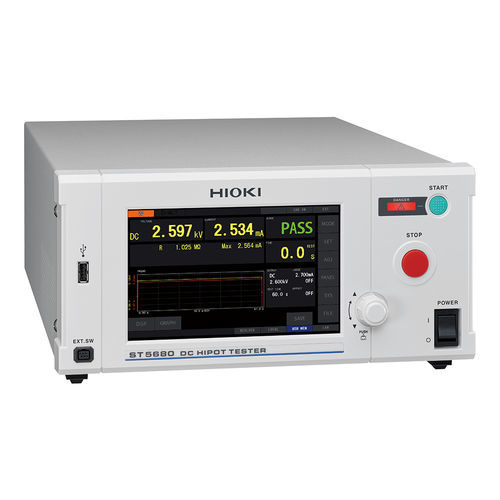

DC hipot tester ST5680

The DC Hipot Tester ST5680 tests for reliable insulation with a waveform by applying a high voltage to the object under test. The instrument applies a DC voltage between test locations and measures leakage current to determine insulation performance. - Verify battery safety and insulation performance using the waveform. - High-spec model specifically designed for DC withstand voltage testing. With support for an array of delivery inspections. - Features arc detection and contact check functions to prevent shipment of defective batteries. Key Features • Preventing the shipment of batteries with latent defects that could lead to fires • Verify insulation performance with waveforms and values to improve production processes, analyze defective batteries, and to promote inspection quality • Prevent minuscule failures due to arc discharges • Preventing testing do-overs due to erroneous judgments • Satisfies test conditions defined by international standards • Insulation breakdown voltage (BDV) measurement function Verify insulation performance with waveforms and values (Waveform display function) The ST5680 is a DC Hipot tester that can perform DC withstand voltage testing and insulation resistance testing in compliance with a variety of safety standards. In addition to generating PASS/FAIL judgments, the instrument can display and record applied voltage waveforms and leakage current waveforms acquired during testing. Its ability to visualize and analyze testing is useful from a test traceability standpoint.
