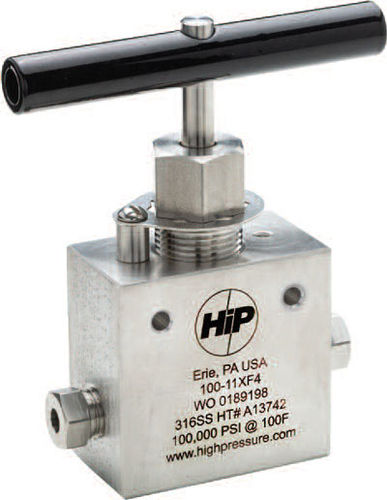

Manual valve XF series

adjustmentthreadedseat

High Pressure (coned and threaded) type connections for 1/4", 3/8" and 9/16" O.D. tubing. Non-rotating tip stems insure long life on valve seats. Heavy duty "rolled style" stem design is shown below. Glands and collarsfor tubing are supplied with each valve unless otherwise requested (glands and collars are shown on page 61). Materialsinclude 316 and 17-4 stainless steel for valve bodies with tool steel lower section stems. Valve packing is teflon. Corresponding fittings (elbows, tees, crosses, etc.) are shown on page 59. Replaceable Seat Valves are available for 1/4" O.D. tubing. These valves feature the same body style and dimensions as the two way angle valves (shown below). To order add "R" to the corresponding two way valve catalog number (eg. 100-12XF4R). Valve Features Non-rotating slotted stem design Packing below stem threads Type 316 ss high tensile bodies Positive gland lock device No stem adjustment needed Black T-handles Tube sizes 1/4" through 9/16"
