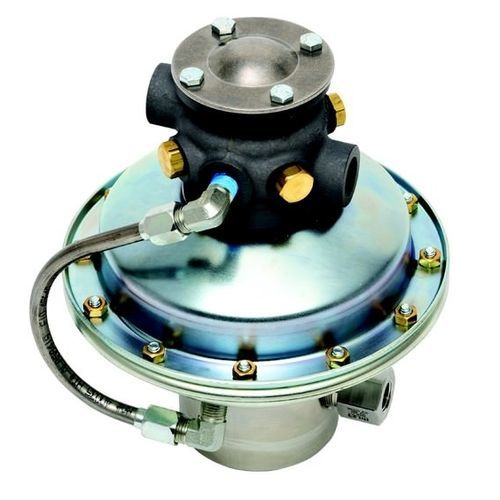

Piston pump S-216-J series

wateroilair-driven

This general use, air-driven pump produces medium to high liquid pressures and services oil, water and compatible chemicals. The Model S-216-J standard pump is offered in ten ratios (area of large air piston to area of small liquid piston) ranging from the 10:1 ratio pump which develops up to 1025 psi (70 bar) to the 300:1 ratio which develops up to 36,500 psi (2516 bar). By regulating the driving air pressure, the pump’s liquid output can be adjusted through its pressure range. The pump’s wetted section components are stainless steel, compatible with most non-abrasive liquids. Being air-driven, the pump is safe for use in hazardous areas. The S-216-J standard pump requires lubricated driving air to lubricate the pump’s dynamic air seals and other internal parts within the air portion of the pump.
