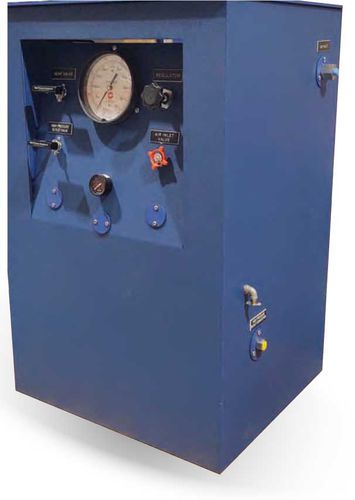

Self-priming pumping unit PS series

stationaryindustrial

High Pressure air operated hydraulic pumping systems are complete, selfcontained units and ready to operate. Just hook up standard shop air supply (maximum 100 psi) to connection supplied on the side of the console. Discharge capacities range to 64 in3/min. FEATURES System includes hydraulic oil reservoir, oil filter, air operated hydraulic pump, pressure gauge, panel mounted high pressure valves, safety head assembly, panel mounted air regulator and gauge and air line filter and lubricator. All components are enclosed in a steel console with only the back exposed. Dimensions of standard systems are 26” wide, 24” deep and 40” high. SYSTEM CAPABILITIES The output pressure is predetermined by adjustment to the air regulator setting. Output pressure is maintained constantly and pump compensates for pressure drops or losses. Hydraulic input is gravity fed, however, if pump is used alone, the feed can be pressurized to the limit of the pump. Within the pump the large diameter air piston drives a smaller piston to provide fluid flow at high pressure. Air consumption will be approximately 56 CFM of free air at 100 psi input. Reservoir = 4 gallon capacity, do not pressurize.
