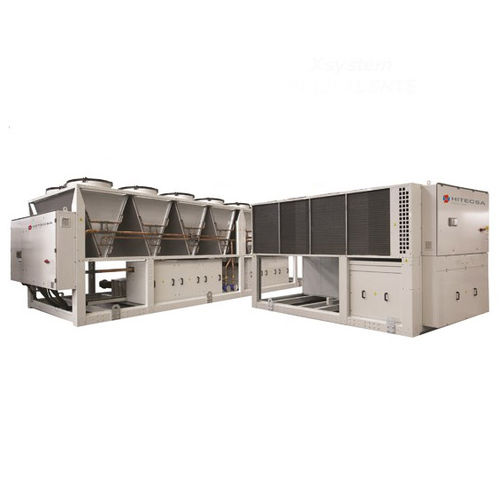

Water chiller-heater EQPL, EQPH

scroll compressorair condenser

Reversible water chillers and heat pumps with air condensation and axial fans. Series with hermetic scroll compressors and refrigerant R410A. Class A. TECHNICAL DATA • Cooling capacities: 355.2 to 916.8 kW • Heating capacities: 368.8 to 698.9 kW • Compressor: hermetic rotary type scroll with thermal protection and crankcase heater • Up to 6 stages of Partialisation with high load efficiency partial • Water side exchanger: with stainless steel plates, with closed cell expanded polyurethane rubber insulation and water flow differential pressure switch and Victaulic connections • Air side exchanger: microchannel (EQPL) or finned coil with copper tubes and aluminium fins (EQPH) • Fan: axial-type electric fans with external rotor and internal thermal protection and protection grilles • Control: electronic microprocessor with Adaptive Function Plus logic • Structure: load-bearing structure made of galvanised sheet steel and painted with polyester powders In addition, the unit includes: • Magnetothermic switches in compressors and fans • High and low pressure display of the refrigeration circuit • Electronic expansion valve • Clock card • Master/Slave management up to 4 units in parallel MODELS • EQPL: high-efficiency unit prepared for cooling only • EQPLSS: super-silenced unit intended for cooling only • EQPH: high efficiency heat pump unit • EQPHSS: super-silenced heat pump unit
