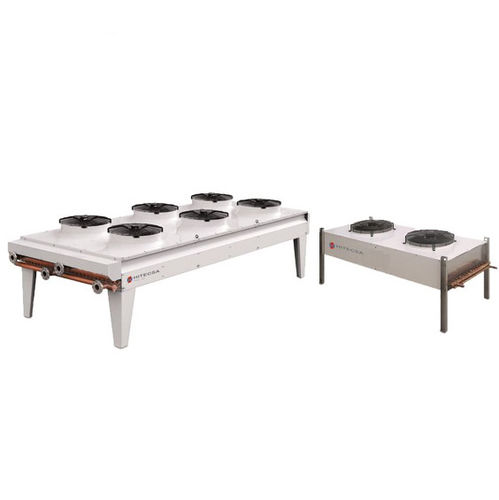

Air-cooled condenser RC

axialgalvanized steelfor refrigeration application

Remote air-cooled condensers with axial fans for direct expansion unit operating on refrigerant gas R410A. To be combined with EWNL-RC and EWML-RC motor-evaporators. TECHNICAL DATA • Heat exchanger: high-efficiency finned battery with mechanically expanded copper tubes in the aluminium fins. Refrigerant connections must be soldered. Project pressure 40 bars. Each exchanger has been tested against dry air leaks and is supplied with nitrogen preload • Fans: axial type with external rotor with fans with pallets made of polymer material with integrated thermal protection to provide protection against thermal overload IP54 degree of protection in accordance with DIN 40050. The motor fans also have as standard, the speed control with phase cutting • Structure: pre-painted galvanised sheet steel with epoxy finish (RAL 9002) • The coil structure is made of aluminium alloy (AlMg3), to protect against vibrations and thermal expansion • Capacitors are supplied with a support flange kit for vertical installation with horizontal airflow (RC V), or horizontal and vertical airflow (RC H) The support flanges are made of galvanised steel Electrical panel made up of: • Prepared electrical wiring for the voltage of 400V-3ph-50Hz power supply MODELS: • RC: version "B" Base • RCS: version "S" Silenced • RCSS: super-silenced "SS" version
