• LED indicators for power supply,relay and reaction timer

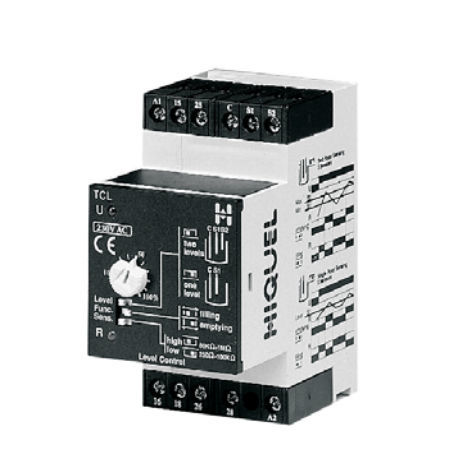

The TCL controls the level ofconductive liquids in aconductive or non-conductivecontainer and works bypassing a low voltage throughthe liquid from a suitable probeto an earth return which caneither be the container oranother probe.
Single point sensing:
The relay changes over each time the liquid contacts C and S1.
Two point sensing:
The relay changes over each time the liquid contacts C, Sl and S2.
The relay resets when the liquid level returns below Sl.
The polarity of the sensor voltage is periodically reversed and is sufficiently low to avoid electrolytic action between the probes.
supply voltage variation
nominal voltage +10% / -20%
frequency range
48 - 63 Hz
duty cycle
100%
reset time
< 100ms
