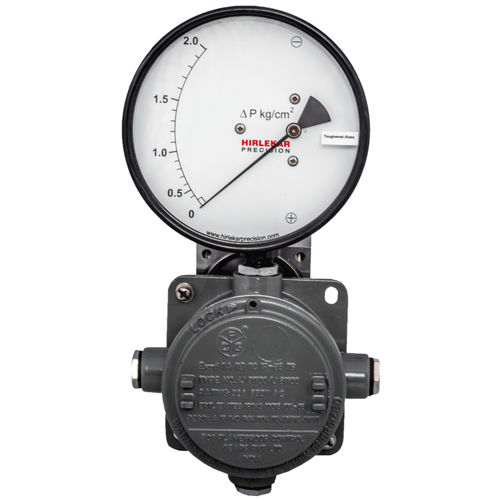

Differential pressure gauge EX 200 DPG

analogNPT 1/4BSP 1/4

In the Hirlekar Precision Model EX-200 DPG, the movement of the piston is converted into appropriate calibrated rotary movement of the pointer through a magnetic connection. This type of piston model is used in applications where minor migration of the media from high pressure side (HP) to low pressure side (LP) is permitted. The explosion proof box manufactured by Akron (USA) is ATEX approved. Specifications Migration - Minor from high to low port First marking on scale - 20% of the FSD Wetted Parts - Body material, SS 302 spring, ceramic magnet & seals Mounting - As per the explosion proof box drawings SS & Monel : 400 bar Seals - Buna-N, Viton & EPDM ‘O’ Rings Window - Standard: Float glass Optional: Toughened glass, acrylic & safety glass Porting - Bottom (right side) & back Over range protection - Up to the max. working pressure from high & low side
