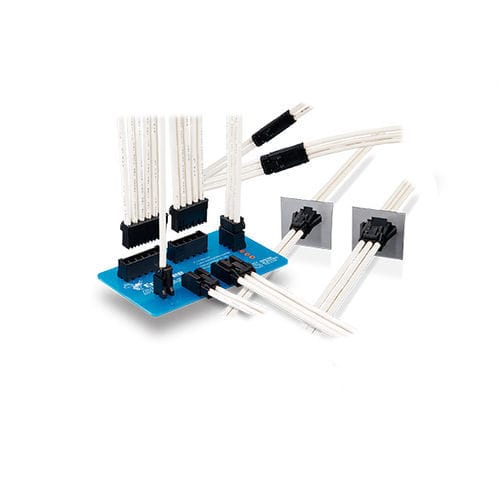

Data connector DF63 Series
wire-to-wirewire-to-boardboard-to-wire

data connector
data connector
data connector
data connector
data connector
Add to favorites
Compare this product

Go to the Hirose Electric Europe B.V. website for more information

Characteristics

Type
data
Format
wire-to-wire, wire-to-board, board-to-wire
Shape
parallel, straight, right-angle
Connection type
socket, crimp, through-hole, locking
Electrical characteristics
power, polarized, short-circuit
Material
gold, tin
Product applications
for power supplies
Domain
industrial, for automotive applications, for robotics
Other characteristics
in-line
Primary current

Max.: 15 A

Min.: 10 A

Voltage

630 V

Operating temperature

Max.: 105 °C
(221 °F)

Min.: -55 °C
(-67 °F)

Description

15A 3.96mm pitch Wire-to-Board Connectors for Internal Power Supply (UL, C-UL and TÜV Listed) 1. Rated for up to 15A　(when using 16 AWG wire) ＊ Supports 7.92mm pitch 2. Secure mating and clear tactile click 3. Prevents incomplete insertion of the crimp contact 4. Prevents incorrect mating ＊ Keying options available to prevent incorrect connections. 5. Reverse mounting prevention to PCB 6. Short-circuit prevention 7. Molded lance design 8. Suitable for potting Capable of being potted, up to 5mm. 9. Solder crack prevention
