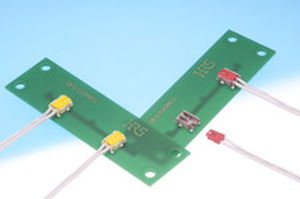

Data connector DF61 Series
wire-to-boardparallellow-profile

data connector
data connector
data connector
data connector
Add to favorites
Compare this product

Go to the Hirose Electric Europe B.V. website for more information

Characteristics

Type
data
Format
wire-to-board
Shape
parallel, low-profile
Connection type
crimp
Electrical characteristics
power, high-current, digital
Product applications
for power supplies, for cameras, for LED lighting, for computer, for mobile devices
Domain
electric power industry
Other characteristics
compact
Primary current

5 A

Voltage

350 V

Pitch

2.2 mm
(0.087 in)

Operating temperature

Max.: 105 °C
(221 °F)

Min.: -55 °C
(-67 °F)

Description

Wire-to-Board Swing-Lock Connector for Low-Profile Power Source 1. Reinforced Swing Lock Structure 2. Header Lock Improves Plug Retention 3. Compact Size- High Voltage 4. Solder Wicking Prevention 5. High Current of MAX 5 Amps(22AWG) Digital cameras, digital video cameras, LED lights, laptop computers, tablet computers, portable devices, power supply equipment, etc.
