Data connector DF40 Series
FPCFPC/FFCSMT

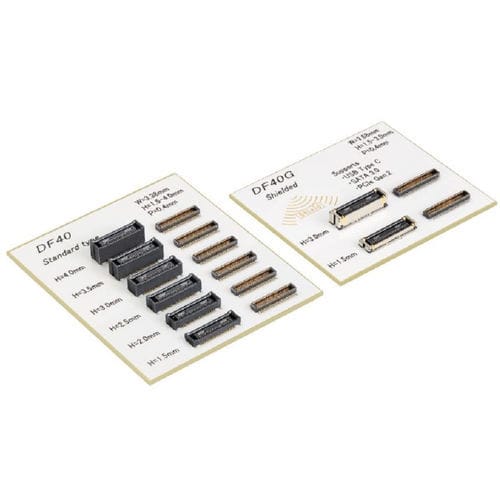

Data connector - DF40 Series - Hirose Electric Europe B.V. - FPC / FPC/FFC / SMT
Data connector - DF40 Series - Hirose Electric Europe B.V. - FPC / FPC/FFC / SMT
Data connector - DF40 Series - Hirose Electric Europe B.V. - FPC / FPC/FFC / SMT - image - 2
Data connector - DF40 Series - Hirose Electric Europe B.V. - FPC / FPC/FFC / SMT - image - 3
Data connector - DF40 Series - Hirose Electric Europe B.V. - FPC / FPC/FFC / SMT - image - 4
Add to favorites
Compare this product

Go to the Hirose Electric Europe B.V. website for more information

Characteristics

Type
data
Format
FPC, FPC/FFC, SMT, board-to-board
Shape
parallel
Material
gold
Product applications
transmission, for cameras, for vehicles
Domain
for medical applications, for automotive applications, inspection, for production
Other characteristics
high-speed, heat-resistant
Primary current

0.3 A, 3 A

Voltage

30 V

Pitch

0.4 mm, 4 mm
(0.016 in, 0.157 in)

Data rate

5 b/s

Operating temperature

Min.: -35 °C
(-31 °F)

Max.: 85 °C
(185 °F)

Description

0.4mm Pitch, 1.5 to 4.0mm Height, Board-to-Board and Board-to-FPC Connectors 1. Space-saving: Depth 3.38mm 2. 1.5-4.0mm stacking height variations 3. Supports USB4 Gen.2 (10Gbps) transmission* 4. Long effective mating length: 0.45mm 5. Secure mating with clear tactile click 6. Contact buckling prevention 7. Wide variety of variations (with shield: DF40G series, with complete lock: DF40GL series, for ADAS: DF40T series) 8. Abundant variations in the number of contacts from 10 to 120 contacts 9. Secure self-alignment with guide ribs: 0.33mm 10. Structure to prevent soldering by nickel barrier 11. Highly durable connector for inspection for production line is also available * Only H=1.5mm type is compatible with Type-C signal transmission.
