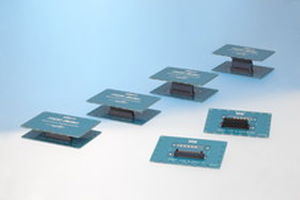

Data connector FX20 Series

SMTboard-to-boardparallel

0.5 mm Pitch, Board to Board Connector with Floating Structure 1. 0.5 mm pitch 2. Connection type: Right angle / Vertical 3. Pin counts : 20, 40, 60, 80, 100, 120 and 140 4. Floating range: ± 0.6 to 0.8 mm in the X direction and +/- 0.6 mm in the Y direction 5. A double beam contact structure produces a highly reliable contact (Refer to the figure on the right) 6. Current capacity: 0.5 A per pin 7. Effective mating length of 1.5 mm 8. No conductive trace surface is not specified 9. Contains the vacuum pick up area needed to allow automatic mounting 10.Self-aligning and self-guiding structure
