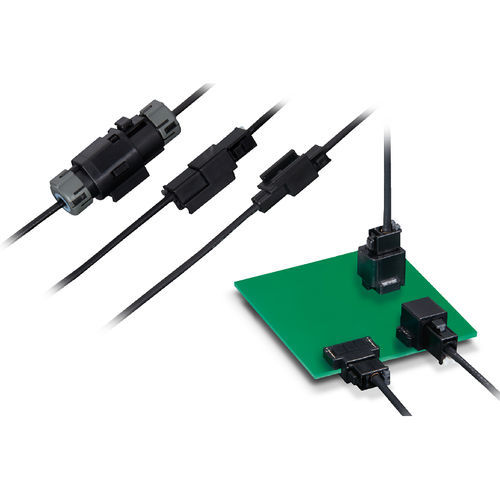

Data connector GT16G Series
coaxialSMASMT

data connector
data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data
Format
coaxial, SMA, SMT
Shape
rectangular, straight
Connection type
crimp, through-hole
Electrical characteristics
DC, high-frequency
Material
nickel-plated, gold, tin
Product applications
antenna
Domain
for automotive applications
Other characteristics
waterproof, high-speed, in-line
Impedance

50 Ohm

Primary current

1 A

Voltage

250 V

Operating temperature

-30 °C, 85 °C
(-22 °F, 185 °F)

Max.: 105 °C
(221 °F)

Min.: -40 °C
(-40 °F)

Description

6GHz-compatible antenna connector 1. Superior high frequency performance :V.S.W.R. is 1.5 in max (DC to 6GHz) 2. Satisfies rigorous test conditions for automotive devices 3. Robust lock design provides a tactile click Lock strength : 98N min 4. Many variations 5. RoHS compliant
