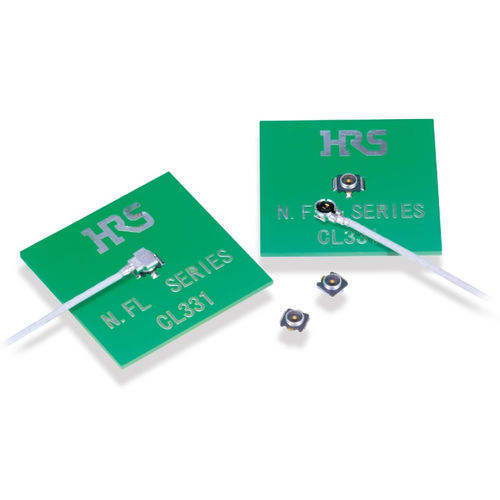

Data connector N.FL SeriescoaxialPCBSMT
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- coaxial, PCB, SMT
- Shape
- circular
- Electrical characteristics
- DC, insulated, frequency
- Product applications
- plug, board, transmission
- Domain
- automatic
- Other characteristics
- miniature, lightweight
- Impedance
50 Ohm
- Operating temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)
Description
1.4mm Mated Height, Lightweight SMT Miniature Coaxial Connector
1. 1.4mm Mated Height (1.5mm Max.)
2. Occupied PCB Space
3. Light weight
Receptacle : 14mg
Right Angle Plug : 28mg
4. Accepts high frequency transmission of DC to 6 GHz.
5. Supports Automatic Mounting
6. Ultra-fine Coaxial (Fluorinated Resin Insulated) Cables
7. Environmental Compatibility
◆RoHS2 Compliant
◆Halogen Free
Chlorine and bromine above the standard values
are not used for receptacle and plug harnesses.
*As defined by IEC61249-2-21
Br 900 ppm Max. , Cl 900 ppm Max. , and Br+Cl 1500 ppm Max.
8. Easy Connector Removal
9. Easy Mating Confirmation
