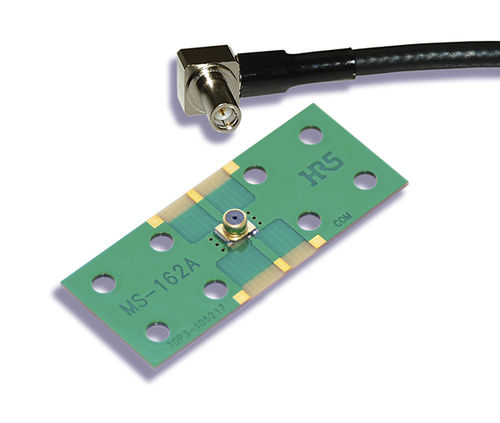

Coaxial connector MS-162A seriesSMTelbowboard
Add to favorites
Compare this product
Characteristics
- Format
- coaxial, SMT
- Shape
- elbow
- Product applications
- board
Description
Features
Miniature Interface Coaxial Switch, DC to 10 GHz
1. Wide frequency range : from DC to 10 GHz.
2. Low insertion loss
3. Space-saving design : 3.5 mm x 3.1 mm occupied board space.
4. Low profile : Height 2.5 mm max. he board.
5. Lightweight : 0.043 g. total weight
6. Durability : 12, 000 mating/unmating cycles
7. Board placement with automatic equipment.
8. Self alignment : Self align in horizontal axis within 0.5mm.
9. Beryllium, Halogen-free*
*As defined by IEC61249-2-21
