Data connector FX23 Series
hybridSMTboard-to-board

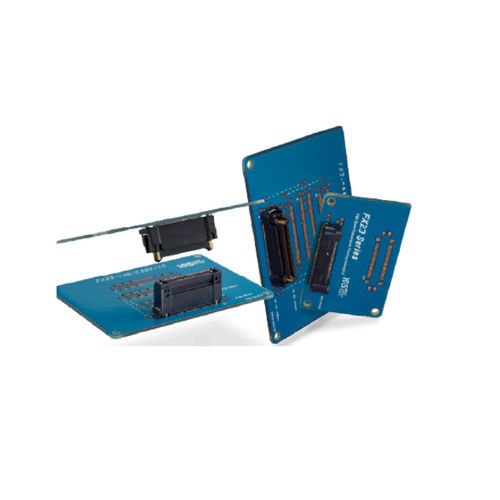

Data connector - FX23 Series - Hirose Electric Europe B.V. - hybrid / SMT / board-to-board
Data connector - FX23 Series - Hirose Electric Europe B.V. - hybrid / SMT / board-to-board
Data connector - FX23 Series - Hirose Electric Europe B.V. - hybrid / SMT / board-to-board - image - 2
Data connector - FX23 Series - Hirose Electric Europe B.V. - hybrid / SMT / board-to-board - image - 3
Add to favorites
Compare this product

Go to the Hirose Electric Europe B.V. website for more information

Characteristics

Type
data, hybrid
Format
SMT, board-to-board
Shape
parallel, right-angle, low-profile
Connection type
through-hole
Electrical characteristics
high-power, current
Material
gold
Product applications
transmission, PLC, POS, for SMT pick & place machines
Domain
for industrial applications, for medical applications, for automotive applications, for robotics
Other characteristics
high-speed
Primary current

0.5 A, 3 A

Voltage

50 V, 200 V

Pitch

0.5 mm
(0.02 in)

Operating temperature

Max.: 105 °C
(221 °F)

Min.: -55 °C
(-67 °F)

Description

High Speed Transmission, 0.5mm pitch Board-to-Board Floating Connectors 1. 0.5mm pitch 2. Stacking (Height : 8 - 30mm)/Right Angle 3. Contacts available : 20/40/60/80/100/120 for signal + 4 for power source 4. Floating range : X direction : ±0.6mm , Y direction: ±0.6mm 5. High speed transmission (8+ Gbps) 6. Hybrid power design (3A/pin×4 lines) 7. Current capacity : Signal contact 0.5A/pin, power contact 3A/pin 8. Pick & Place Mounting (suction tape attached as standard) 9. Excellent mating performance due to the large guide post.
