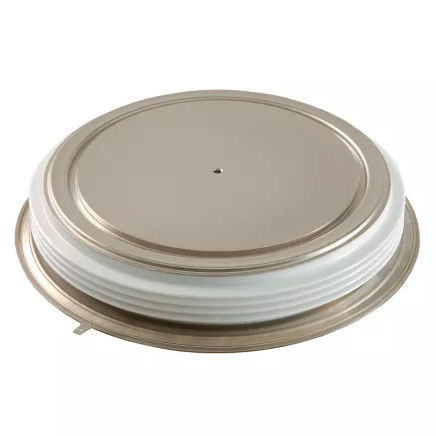

Control thyristor 5STP 10L8500

phase

The bypass thyristor, 5STP 10L8500, is a new semiconductor device that offers three modes of operation: • Normal operation: Device is blocked permanently. • Protection mode: Device is irreversibly shorted by a surge current event (ITSM / I2t) triggered through the gate. • SCFM mode: Continuous stable long-term short circuit mode. A typical application is short-circuiting faulty cells in a multilevel converter topology (MMC). The thyristor housing will not rupture when passing currents up to, or exceeding, 363 kA or 217 MA2s. After a fault, the device operates as a stable short circuit for more than a year.
