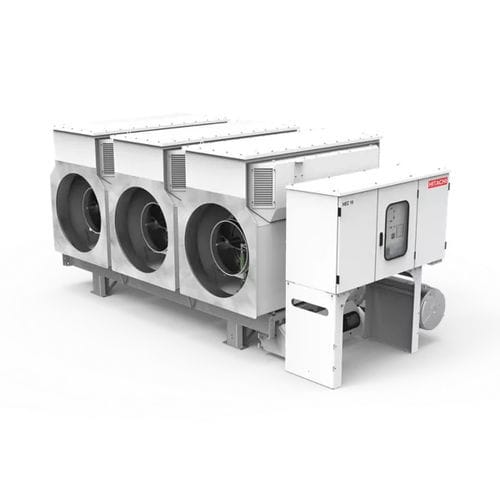

Generator circuit breaker HEC 10 series

thermal-magneticshort-circuithigh-performance

High-performance system solution for demanding power plant applications HEC 10 GCB is a compact design capable of carrying normal currents up to 29,000 A as well as interrupting short-circuit currents up to 210 kA to protect the most critical generator applications up to 1,500 MW. Based on the well-proven HEC technology with over two decades of successful field experience, it is an enhancement of type HEC 7/8/9 with the following features: • Fully type-tested exceeding the mandatory requirements of the latest GCB standard IEC/IEEE 62271-37-013 • Equipped with an enhanced passive cooling system design based on the most advanced passive heat pipe technology, patented by Hitachi Energy • Features HMB-8 from the most reliable* spring operating mechanism family to provide safe performance throughout the entire lifespan of the GCB • Fully assembled and factory tested, brings substantial savings in time and cost for installation and commissioning Applications • Demanding generator applications according to G2** class Why Hitachi Energy? • Third generation of HEC technology encompassing almost two decades of Hitachi Energy successful field experience • Fully type-tested exceeding the mandatory requirements of the latest GCB standard IEC/IEEE 62271-37-013 * Most reliable spring operating mechanism as per paper A3-206 presented at CIGRE 2012 ** For GCB with a rated generator-source short-circuit breaking current characterized at contact separation by a degree of asymmetry of 130 percent with the assigned a.c.component (alternating current) of the rated generator-source short-circuit breaking current.
