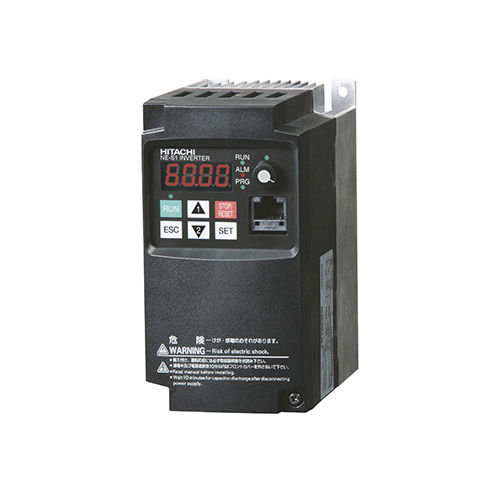

Three-phase frequency inverter NE-S1 single-phaseModbusPWM
Add to favorites
Compare this product
Characteristics
- Type
- three-phase, single-phase, Modbus, PWM
- Mounting
- standard, box
- Protection class
- IP20
- Other characteristics
- compact, variable-frequency, with integrated PLC, with PID controller, economical, small-size, Modbus, miniature
- Power
Min.: 200 W
(682.43 BTU/h)Max.: 4,000 W
(13,648.56 BTU/h)- Intensity
Min.: 1.4 A
Max.: 10 A
- Output frequency
Min.: 1 Hz
Max.: 400 Hz
Description
The Hitachi NE-S1 is our economical and simple to use inverter solution in the popular 0.2 kW to 4.0 kW range. The NE-S1 is designed with both OEM's and System Integrators needs in mind, with its ultra-compact design and out of the box integration in most applications.
HIGHLIGHTS
PID, Logic and time delay functions built-in
RS-485 Modbus RTU standard
Quick reaction times
Optional door mounted operator display
Optional operator display
CE/UL/cUL/c-Tick approvals
Energy saving function standard
