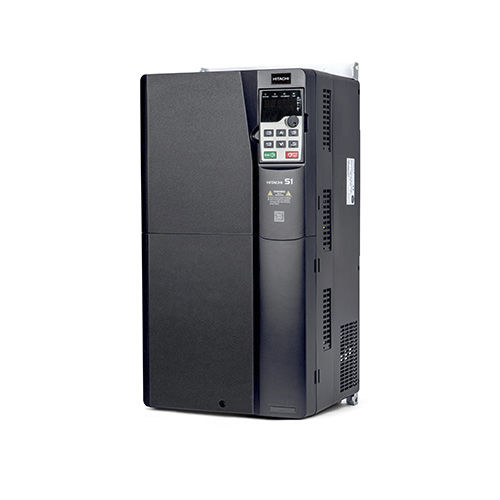

Vector control frequency inverter S1

three-phasesingle-phasedigital display

The new S1 series is perceived as the new standard for general purpose inverter, highly flexible and user friendly for easy commissioning. It is suitable for a wide range of applications, using advanced sensorless vector control. S1 achieves exceptional stability and efficient drive characteristics to save energy and maximize performance. HIGHLIGHTS Compact Design: 0.4 to 2.2 KW, Dual Rating Easy maintenance Various installation ways Excellent performance Multi-function and easy to use Potentiometer on the front for easy frequency adjustment Optional external keypad Supports SVC control Enables high precision of speed torque control and fast speed response Integrates safety function-STO (Safe Torque OFF, SIL2) The unique I/F control is very suitable at low speed with high torque requirements The transition from rotating state to dc braking is very smooth. The current impact is small, and the current response of dc braking is faster Excellent function at "Catch-on-the-Fly" Solid plastic housing 4~75kW Solid metal housing 90~500kW ≤37KW Standard built-in DBU Internal C3 EMC filter, Optional external C2 EMC filter PID control function (with sleep function) Automatic voltage regulation (AVR), Torque compensate function Optional parameter copy LED external keypad, meeting the requirements of diverse applications
