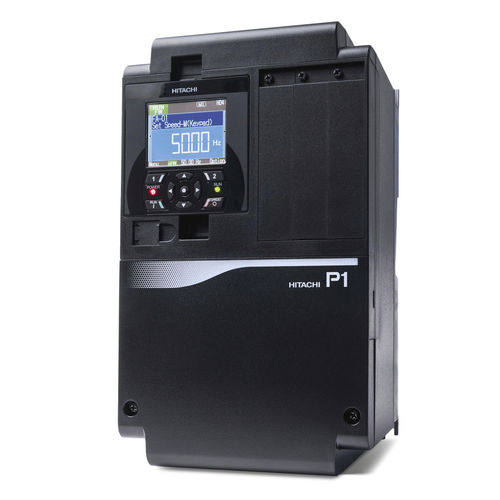

Three-phase frequency inverter SJ-P1
single-phasedigital displayPWM

Three-phase frequency inverter - SJ-P1 - Hitachi Europe GmbH - single-phase / digital display / PWM
Three-phase frequency inverter - SJ-P1 - Hitachi Europe GmbH - single-phase / digital display / PWM
Add to favorites
Compare this product


Characteristics

Type
three-phase, single-phase, digital display, PWM, permanent magnet
Applications
for pump, for conveyor, for induction motors, for permanent magnet motors
Protection class
IP20
Other characteristics
programmable, variable-frequency, Ethernet, EtherCAT, PROFIBUS
Power

Max.: 407,000 W
(1,388,740.98 BTU/h)

Min.: 1,500 W
(5,118.21 BTU/h)

Intensity

Max.: 660 A

Min.: 4 A

Output frequency

Max.: 590 Hz

Min.: 0 Hz

Description

The new SJ Series, Type P1 is at the cutting edge of technology for premium inverters. Highly flexible, it is suitable for a wide variety of demanding applications. SJ-P1 has premium inverter characteristics to achieve instantaneous force and efficient operation. HIGHLIGHTS Easy operation VOP colour LCD operator EzCOM (peer-to-peer communication) Password function Lifetime prediction functions Improved efficiency with 24 VDC supply Quick diagnose of failure occurrence Easy to customize with ProDriveNext configuration software Certified “functional safety” international standard 590 Hz operation is available for precise metal processing Induction motor & permanent magnet motor can be controlled with one inverter series Multi-rating to support space and cost savings RoHS compliant Endurance in severe conditions Long life components
