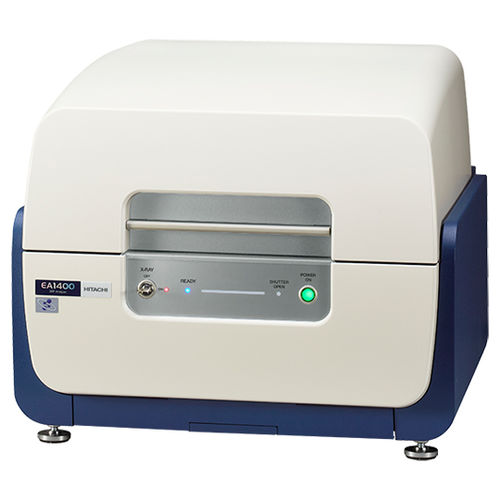

Hazardous environment analyzer EA1400

elementalbenchtopautomatic

Specifically designed for RoHS (Restriction of Hazardous Substances) the EA1000AIII and EA1400 benchtop XRF analyzers have been trusted for over 15 years to deliver consistent results for businesses who need to conform to this directive. With easy and quick measurement for RoHS you can ensure you will be able to meet the requirements for environmental regulations. Benchtop EDXRF analyzer Fast RoHS compliance screening (Pb, Hg, Cd, Cr, Br) Typical RoHS screening time: < 35 seconds (for plastics), < 170 seconds (for brass) Automatic selection of calibration for RoHS screening Element range: Al (13) – U (92), Na (11) – U (92) with vacuum option Materials analysis: fully qualitative and quantitative analysis using empirical and standardless (FP) calibrations Thin film (coating thickness) analysis (option) Sample type: solids, liquids, powders Detector: High resolution silicon-drift detector (SDD) for optimum spectral resolution and results accuracy Optimized measurement conditions with 5 programmable filters Analysis atmosphere: Ambient air, Vacuum for enhanced sensitivity (option) Analysis area diameter: 1mm, 3mm, 5mm (programmable) Sample observation: color CCD camera Single sample analysis, 12-position sample changer (option) Chamber size: 304(W) × 304(D) × 110(H)mm Data management: data and trend management software to ensure consistent product quality and compliance Operation: Laptop or desktop PC
