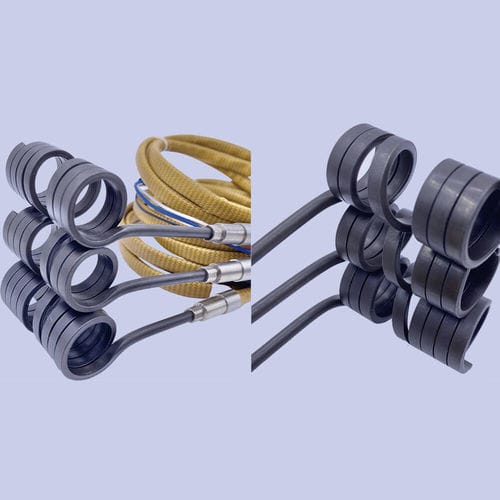

Coil heater

The Hitcontrols™ heating elements is a resistance wire in straight form or wound into a miniature helical coil. Flexible design options include internal, external thermocouple type J or type K, and cross-section of the cast-in brass coil heaters could be made square or rectangular to improve heat transfer. Various sections and sizes for options. Maximum temperature up to 600℃. Surface treatment comes with blasting and black, also provide bright surface. Click here to view our related Hot Runner Temperature Controllers Coil heater internal diameter: Φ10-Φ45mm Option Thermocouple: J/K Max. power: 9W/cm² Max. working temp: 600℃ Any other cross-section can be supplied on request Coil Sections: Flat coil, 2.2×4.2mm, 2.5x4mm, 3x4mm Square coil, 3x3mm, 3.4×3.4mm Round coil, Φ1.8mm, Φ2.0mm, Φ3.0mm Hot Runner Nozzles & spruce bushes Manifolds Injection moulding Injection & Blow Moulding Machine Nozzles PET preform & Thin wall container Moulds Moulds & dies
