Multi-directional valve MultiValve™
manualfor controlfor chemicals

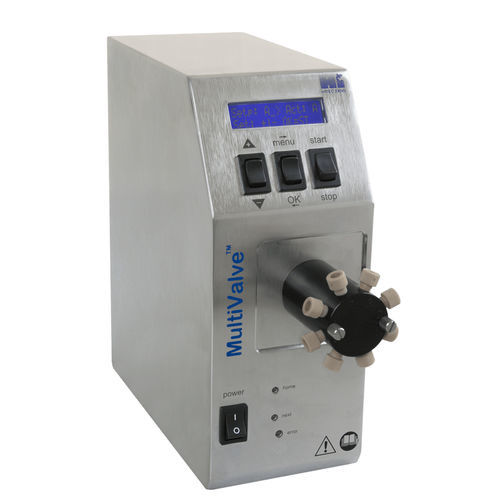

Multi-directional valve - MultiValve™ - HiTec Zang GmbH - manual / for control / for chemicals
Multi-directional valve - MultiValve™ - HiTec Zang GmbH - manual / for control / for chemicals
Add to favorites
Compare this product


Characteristics

Operation
manual
Function
for control
Media
for chemicals
Applications
liquids, for pump
Number of channels
3-way, 4-way, 6-way, 5-way
Other characteristics
with stepper motor, multi-directional
Pressure

8 bar, 30 bar
(116 psi, 435.1 psi)

Temperature

Max.: 40 °C
(104 °F)

Min.: 15 °C
(59 °F)

Description

The MulitValve™ multi-directional valve is particularly suited for liquid handling applications. The control system is compatible with SyrDos™ syringe pumps. The robust stainless steel housing makes the multi-directional valve fit for rough use. Manual operation is possible via the integrated operating unit. • Mode of operation : Multi-directional valve with stepping motor drive • Valves : 3, 4, 5, 6, 8 and 12 way • Opening : 0.06 or 0.8 mm • maximum feed pressure : 8 bar, as an option 30 bar • Material in contact with medium : PTFE, Kel-F, ceramic as an option • Media connections : UNF 1/4" 28G • Medium temperature : 15…40 °C • Control : Serial RS232 or RS485 interface (bus for up to 15 valves) • Power supply : 230 V AC, 50 VA (desk power supply) • Media compatibility : many chemicals, check in individual cases • Degree of protection : IP20 • Dimensions (D x W x H) : 160 x 70 x 190 mm • Weight : approx. 5 kg
