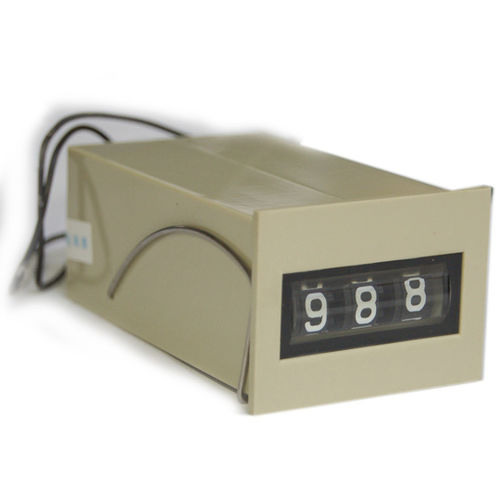

Pulse counter DL013

analogelectromechanicalelectromagnetic

Principle of operation and introduction: DL013 three-digit electromagnetic counters rely on external electrical signals to drive the electromagnet in the counter, and the armature drives the counting mechanism in the counter to carry out totalization counting. This counter is mainly used in lightning arrester leakage current and action recorder or other high-voltage electrical equipment. Technical Parameters: Model - DL103 Display digit size(H×W) - 4.8mm×3.7mm Operating temperature - -10℃～+50℃ Relative humidity - ≤85% Maximum Accumulation Capacity - 999 Operation voltage(fluctuation range:±10%) - DC:12V～220V( various specifications and models) Counting speed - DC: ≤10times/sec Power - DC: 1.5W Reset mode - Non-resettable This product can be tailer-made.
