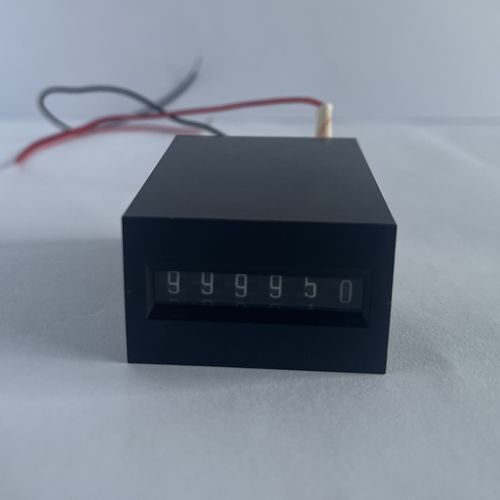

Pulse counter 876-ⅡA

6-digitelectromechanicalelectromagnetic

Introduction: Model 876-ⅡA electromagnetic counter is used to record the accumulation of the number of times of electrical signals without bringing back the zero device. It is mainly used in photocopiers, but also widely used in petroleum, chemical, textile, machinery, mining, national defense, food, printing and other industries for counting various electrical impulses, and can be used with other instruments to form a digital display instrument. Technical Parameters: Models - 876-IIA Display figure specification (H×W) - 4mm×1.8mm Operating temperature - -10℃～+50℃ Relative humidity - ≤85% Maximum Accumulation Capacity - 999999 Operating voltage (Fluctuation range: ±10%) - DC:5V~220V various specifications and models; AC:24V~240V various specifications and models Counting speed - AC:≤5 times/second; DC:≤10 times/second Power - AC:4VA; DC:3W Dimension - 56.5mm×40.2mm×24.5mm Reset mode - Not reset Wiring Method - welding This product can be tailor-made.
