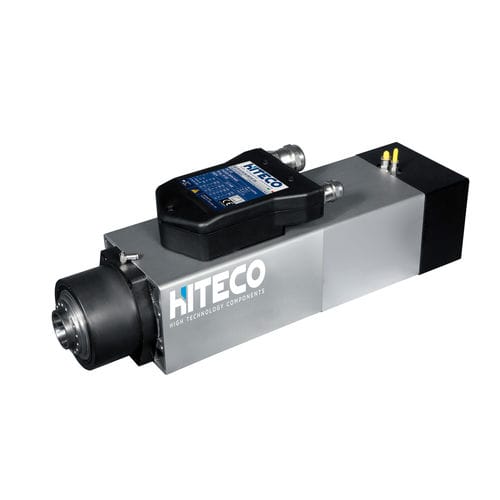

Electrospindle with automatic tool changer QD-1F 4/12 24 I30 series

coolingmachiningconnection

• Ceramic bearings as standard electrical connection in version BC or CC • Compressed air cooling available COMPACT HOUSING Smaller section and weight for more streamlined and lighter machine structures, less powerful motors on the axes and fixing flexibility with setup on 2 sides MULTIPLE TOOL TAPERS Available also with HSK 63F tool taper and ISO30 SIMPLE MAINTENANCE Simple maintenance with spindle kit management DOUBLE VOLTAGE Available in the double voltage version 220V / 380V Bearings - Ceramic - grease lubrication for life Cooling - Electrorfan Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) Release cylinder - Pneumatic double-action Other specifications Taper blow Pressurised labyrinth HSK63F tool taper Plug&Play PP connection CC Circular Connection Speed monitoring sensor (IM Smart Sensor) Bearings temperature monitoring sensor (IM Smart Sensor) Vibration sensor (IM Smart Sensor) Compressed air cooling Anti rotation sleeves Dual voltage 22V/380V power supply
