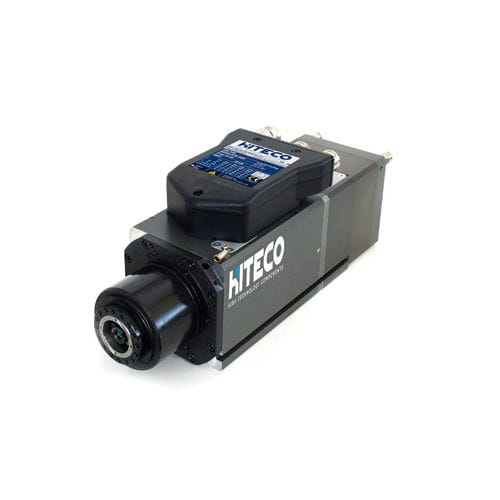

Electrospindle with automatic tool changer QD-2 6.5/12 40 32E

machiningcoolinghigh-power

• iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link) STIFFNESS AND PRECISION Set of 5 ceramic ball bearings on the spindle to achieve maximum stiffness LONG LIFE SPINDLE Variable bearings pre-load system with springs to allow the spindle to machine without overheating CONFIGURABILITY With the same layout there are a wide range of power options available (up to 8 kW) and optionals to meet different types of machining operations VERSATILITY Available with a layout for 3 and 5-axis configuration and for robotic applications Tool taper - HSK 32E Bearings - Ceramic - grease lubrication for life Cooling - Liquid Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) S5 Release cylinder - Pneumatic double-action Other specifications Taper blow Pressurised labyrinth CC circular connection Plug&Play PP connection CC machine side Circular Connection Encoder 1Vpp or TTL Temperature monitoring sensor (IM Smart Sensor) Bearings temperature monitoring sensor (IM Smart Sensor) Vibration monitoring sensor (IM Smart Sensor) Speed monitoring sensor (IM Smart Sensor) Anti rotation sleeves
