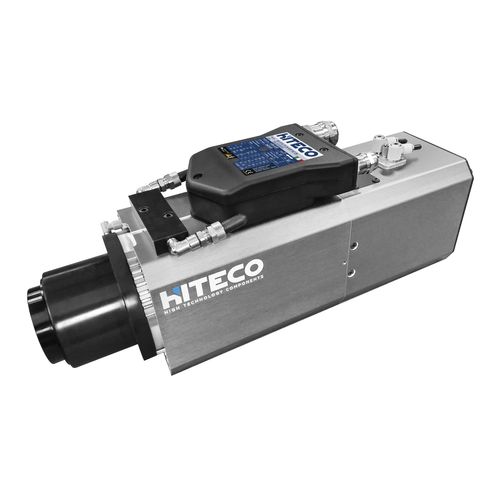

Electrospindle with automatic tool changer QE-2 9/6 24 63F series

machiningcoolingtapping

• Liquid cooling available for intensive uses • Possibility of drilling, flowdrill and threading • Optional encoder available for tapping and precision machining operations MULTIPLE TOOL TAPERS Available also with HSK 63 F, ISO 30 and BT 30 tool taper SIMPLE MAINTENANCE Simple maintenance with spindle kit management Maximum power from 6000 RPM in the air and liquid cooled versions iM SMART SENSOR speed, vibrations and temperature directly to your PC (link) Tool taper - HSK 63F Bearings - Ceramic - grease lubrication for life Cooling - Liquid Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) Release cylinder - Pneumatic double-action Other specifications Taper blow Pressurised labyrinth Long nose C Axis Air Tool Encoder 1Vpp or TTL Plug & play PP connection CC circular connection S5 sensor Speed monitoring sensor Bearings temperature monitoring sensor Vibration sensor
