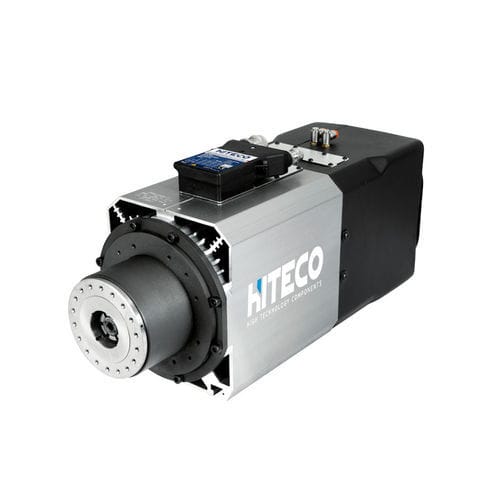

Electrospindle with automatic tool changer QM-1F 11/6 10 80F

machiningfor aluminumfor wood

• Power up to 18 kW and high torque levels for demanding machining operations • 24V electric fan air cooling • iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link) DEMANDING MACHINING OPERATIONS Special HSK 80F and 85S tool taper available for tools with four profiles Maximum power from 6000 RPM in the air cooled versions STIFFNESS Thanks to the use of large bearings CONFIGURABILITY With the same layout there is a wide range of power options available (up to 18 kW) to meet different types of machining operations UIPMENT Tool taper - HSK 80F Bearings - Ceramic - grease lubrication for life Cooling - Electrofan Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) Release cylinder - Pneumatic single-action Other specifications Plug & play PP connection Taper blow Pressurised labyrinth HSK 85S iSpindle Plug & play PP machine side connection Speed monitoring sensor Bearings temperature monitoring sensor Vibration sensor
