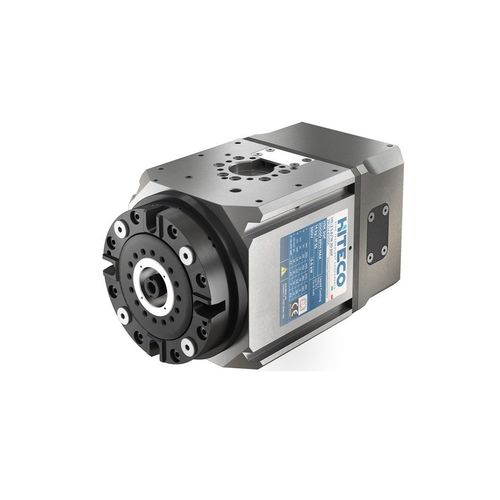

Electrospindle with automatic tool changer HD series

machiningcoolingfor aluminum

• Optimal layout for bi-rotation heads at 90° • Reduced dimensions and weight to ensure utmost versatility • Ceramic bearings that ensure the long life of the electrospindle COMPACT DESIGN High power levels in only 238 mm EXTENSIVE STANDARD EQUIPMENT Anti-rotation system of the aggregates integrated in the electrospindle nose and tool lubrication with two separate circuits MULTIPLE TOOL TAPERS Available with HSK 50F and HSK 40E tool taper CONFIGURABILITY Encoder 1Vpp or TTL available without any change to the layout of the electrospindle Tool taper - HSK 50F/40E Bearings - Ceramic - grease lubrication for life Cooling - Liquid Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) Release cylinder - Pneumatic single-action Other specifications Taper blow Pressurised labyrinth Encoder 1Vpp or TTL S5 sensor
