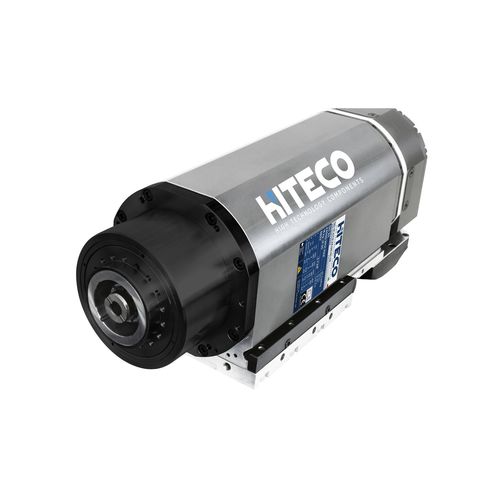

Electrospindle with automatic tool changer PT series

machiningcoolingfor wood

• Power up to 25 kW with asynchronous technology and high torque levels • Spindle for considerable stock removal at low RPMs with large diameter blades • Possibility of installing the encoder in the same casing size HIGH PERFORMANCE Maximum power (up to 25 Kw) available from 6000 RPM with a maximum speed of 16000 RPM STIFFNESS Large bearings to ensure maximum stiffness VERSATILITY Large bearings to ensure maximum stiffnessOptimal layout for bi-rotation heads at 90° and 50° MINIMAL LAYOUT Optimised housing to reach difficult to access machining areas Tool taper - HSK63E Bearings - Ceramic - grease lubrication for life Cooling - Liquid Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) S5 (Piston back) Release cylinder - Pneumatic single-action Other specifications Encoder 1 Vpp or TTL** Taper blow Pressurised labyrinth Encoder 1Vpp or TTL** Plate and pp cable connection
