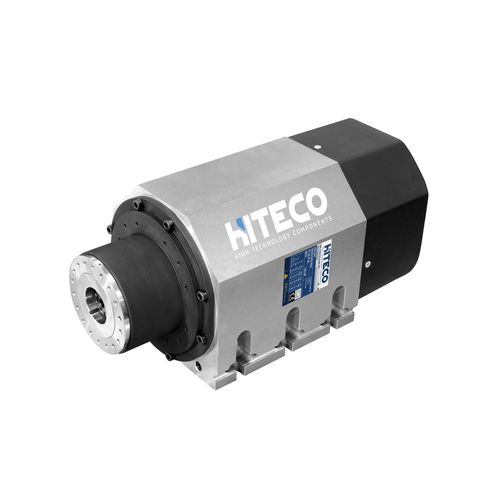

Electrospindle with automatic tool changer QM series

machiningcoolingfor aluminum

• Possibility of installing wide diameter blades and tools • High maximum torque value • iM SMART SENSOR: speed, vibrations and temperature directly on your PC DEMANDING MACHINING OPERATIONS Special HSK 63A, HSK 80F and 85S tool tapers available for tools with four profiles Maximum power from 6000 RPM and possibility of performing threading WIDE RANGE OF OPTIONALS Encoder, Air tool and Mql - Oil Mist (“aerosol oil”) for optimal precision and lubrication during machining SIMPLIFIED MACHINE INEGRATION The asynchronous technology motor and pneumatic tool release allow us to achieve spindle performances usually found on higher range spindles Tool taper - HSK63A/80F/85S Bearings - Ceramic - grease lubrication for life Cooling - Liquid Sensors S1 (Tool grip) S2 (Collet open) S3 (Spindle rotation) Release cylinder - Pneumatic single-action Other specifications Taper blow Pressurised labyrinth Plug&Play PP connector Air Tool Plug & play PP machine side connection S5 sensor Bearings temperature monitoring sensor Speed monitoring sensor Vibration sensor Oil Mist/MQL
