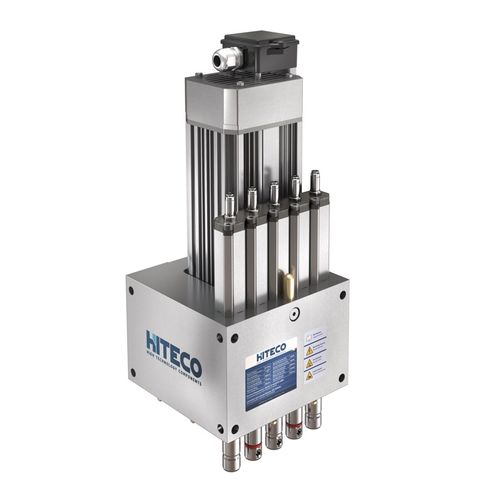

Tapping drilling unit TF.A.5V.0H.0B.Amulti-spindle
Add to favorites
Compare this product
Characteristics
- Other characteristics
- tapping, multi-spindle
- Rotational speed
8,000 rpm
(50,265.5 rad.min-1)- Stroke
60 mm
(2.36 in)
Description
• Spindle shafts with diameter Ø 20mm
• Weldon-type tool taper
Punctual lubrication for each spindle to increase the useful life
Quick replacement of the spindle in a few simple steps
Exclusive dust protection system
Number of vertical spindles - 5
Tool taper - 10 H7 mm
Tool interaxis - 32 mm
Max tool lenght - 70 mm
Motor power - 1.5 kW
Weight - 25 kg
