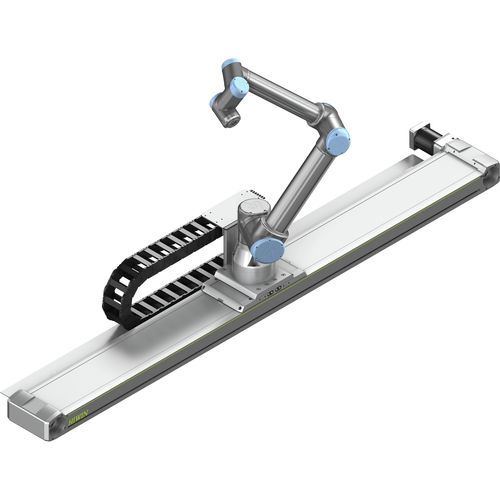

"Seventh Axis" linear axis HT series

timing beltball screwelectric

Linear axes and axis systems are used in many ranges of industry to transport or position components. HIWIN offers linear axes with toothed belt drive for applications with high dynamics and speed. Thanks to HIWIN's modular system, the belt axes can be bendably combined into double axes and multi-axis systems depending on requirements. HIWIN linear axes with ballscrews are available for applications that require high feed forces and precision. HIWIN linear axes with linear motor drive fulfil the highest requirements in terms of dynamics, precision and synchronisation. If the reach of a cobot is not sufficient for an application, the HT aluminium linear tables and the smart lightweight robots complement each other perfectly, both visually and technologically, to form a 7th axis system. Thanks to a freely selectable stroke in millimetre steps and a wide range of options (e.g. different drive types, steel cover strip, limit switch, energy chain), the axes can be individually adapted to the respective application requirements. The robot axes are available for various robot makes and are supplied directly with a suitable adapter for the robot.
