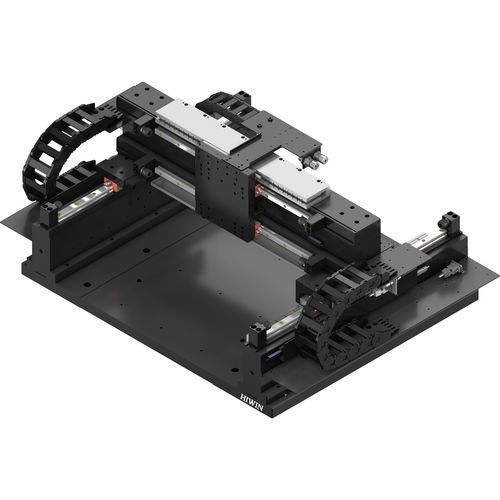

Gantry positioning system LMG3A series2-axislinearlinear motor-driven
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2-axis
- Features
- linear, gantry
- Other characteristics
- ball screw, precision, linear motor-driven
- Repeatability
1 µm
- Load
10 kg
(22.05 lb)- Speed
Max.: 5 m/s
(16.4 ft/s)Min.: 0 m/s
(0 ft/s)
Description
Aluminium gantries satisfy the highest requirements when it comes to precision and dynamic response. Depending on the ambient conditions and the dynamic requirements, gantries that are driven on both sides or on one side are available. The HIWIN standard offers different series with a wide variety of options. Customised solutions can also be developed with these options. Different drive options (linear motor or shaft) are also available for the Z-axis. Prefabricated drawings and 3D models can be found on the website.
Catalogs
No catalogs are available for this product.
