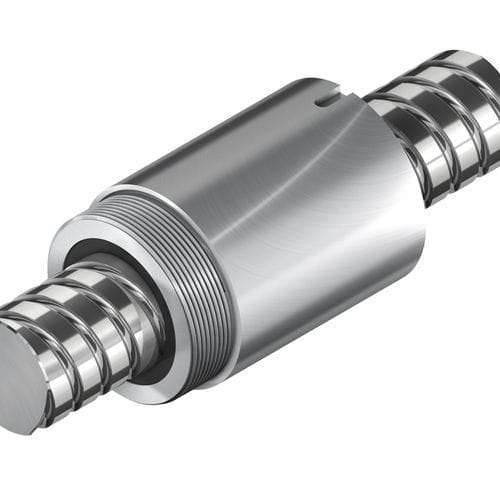

Ball screw nut SE series
cylindricalmetalthreaded

ball screw nut
ball screw nut
Add to favorites
Compare this product


Characteristics

Types
cylindrical
Material
metal
Other characteristics
threaded, for ball screw
Nominal diameter

Min.: 36 mm
(1.42 in)

Max.: 95 mm
(3.74 in)

Description

If space is limited, ballscrews with cylindrical nuts are ideal. They can be fully integrated into the application. To install them, the nut is clamped and secured against twisting by means of a feather key. Lubricant is supplied via a circumferential groove. HIWIN cylindrical single nuts of type SE with peeled shaft are a good choice for transport and positioning tasks. Characteristic of this type of nut is the external thread through which the connection to the application is established. SE nuts are equipped with an internal single recirculation system and come with axial play as standard.
