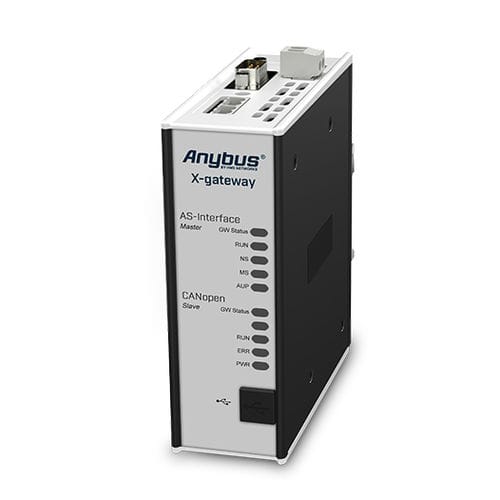

Industrial gateway AB7827
AS-InterfaceCANopenPLC

industrial gateway
industrial gateway
Add to favorites
Compare this product


Characteristics

Type
industrial
Network
CANopen, AS-Interface
Other characteristics
PLC, slave, data transmission
Transfer rate

167 kb/s

Description

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between AS-Interface and CANopen networks. FAST COPYING OF I/O DATA The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Master on the AS-Interface network and as a Slave on the CANopen network. The data transmission is completely transparent with a maximum data capacity of 512 bytes in each direction. EASY CONFIGURATION - NO PROGRAMMING REQUIRED! The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O. Fast copying of cyclic I/O data between two networks (10-15 ms) Proven and tested with all PLC manufacturers Supports up to a maximum of 512 bytes of Input and Output data in each direction Powerful Master interface for AS-Interface eliminates the need for a PLC controller Optional control and status information added to the I/O data for diagnostic purposes Robust stand-alone housing for use in harsh industrial environments Global free technical support and consultancy
