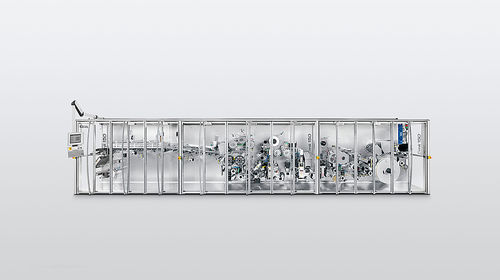

Automatic packaging machine PMK series

filmcontinuousmedical

PMK is a freely configurable production platform for web processing. Standard core processes such as sealing, cutting and punching are combined depending on the product with individually coordinated technology modules. So, based on the PMK, for example, transdermal therapeutic system (TTS/TDS) can be produced as well as Oral Dissolvable Films (ODF) or diagnostic test strips. The ability to replace individual modules makes it possible to easily retrofit the system to produce product variants. Benefits • Pharmaceutical GMP design; modular setup with a choice of different stations • Slight and variably adjustable web tension • Integrated film handling, punching and sealing • Labeling, marking and printing, including inspection system • Welding and hemming processes using thermal, laser and ultrasonic technology • Inspection processes such as leak tightness and flow inspections, plus pressure, force, weight and torque measurements up to overall functions testing Technical data • Common design: 1-3 webs • A maximum of 8 webs is possible • Web width: 150-700mm Final products • ODF – Oral dissolvable film • TDS – Matrix patch standard/ special design • TDS – Reservoir patch • TTS – Transdermal therapeutic systems • Diagnostic test strips and biosensors • Classic dressing • Medical products for dressing wounds • etc.
