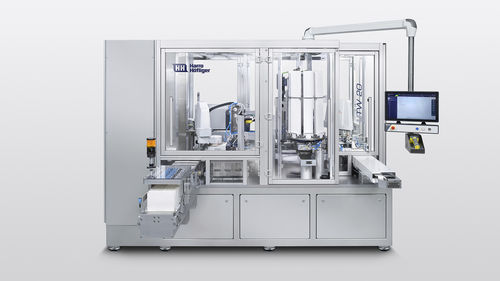

Automatic winding machine UTW 20

paperbatchprocess

The UTW 20 winding machine packages surgical suture material in trays in a fully automated process. The patented gripper system feeds the needle to the tray, after which it is fixed in the needle park and the thread is quickly and precisely wound. Highly sophisticated technologies and individually coordinated steps ensure perfectly filled trays.  Benefits • Processing of a wide variety of needle-suture combinations • Fully automated feeding of trays and paper lids • Inline printing of batch data • Flexible HMI • Optional perfect adaptation to the sterilization process via magazines • Patented thread feeding Technical data • Output: Up to 20 products/min. Maschinenfeatures Feeding Feeding of the trays takes place in an automated process, which includes verification of product presence and orientation. The needles are picked up by a patented gripper system and precisely fixed in the tray’s needle park. Sealing The paper lids (for the trays) are fed in an automated process in the UTW 20 and printed inline in accordance with the customer’s wishes. Then the two components are ultrasonically sealed, which provides a secure cover for the tray and protects the suture material. Winding After the needle is inserted, the thread is wound in a controlled manner. A specially developed SCA (Suture Control Arm) ensures the necessary precision during the winding process. The servo motor drive enables simple format changeover.
