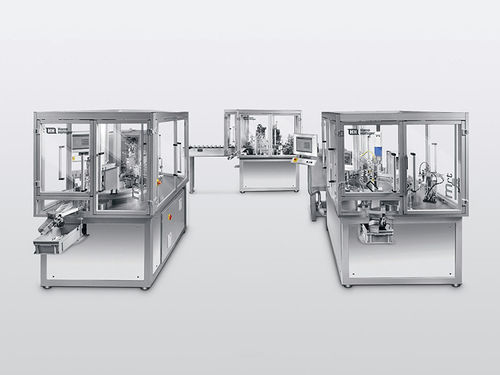

Automatic assembly machine M series

manualsemi-automaticfor medical applications

The round motion machines are the ideal assembly platform for products with a limited number of individual parts and processes. Because the assembly and inspection processes are compactly arranged, this platform only requires a minimal amount of space. The assembly machine reaches high cycle rates nonetheless. The MRT rotary table machine can be set up with one or more round motion machines. Benefits • High availability and cycle time with minimal space requirements • Automatic and semi-automatic design options possible by integrating manual work spaces • Easy to link to other technology platforms, assembly machines and packaging machines Technical data • Output: up to 80 cycles/min • Exception: 1 to 12 grooves • Clean room design option: Clean room class 100,000 – 100 • Process station motors (depending on the assembly task): • cam-controlled, electro-pneumatic or servo-motor driven Final products • Inhalers • Diagnostic products Periphery • Assembly machines • Dosing and filling machines • Feeding technology • Marking • Control systems • Packaging machines Machine features Parts handling Components are automatically taken out using vacs, grippers or tongs and accurately transferred. This can be performed in a linear or swivel movement. To increase the output, these systems can be set up at multiple locations so as to perform loading and unloading tasks at the same time
