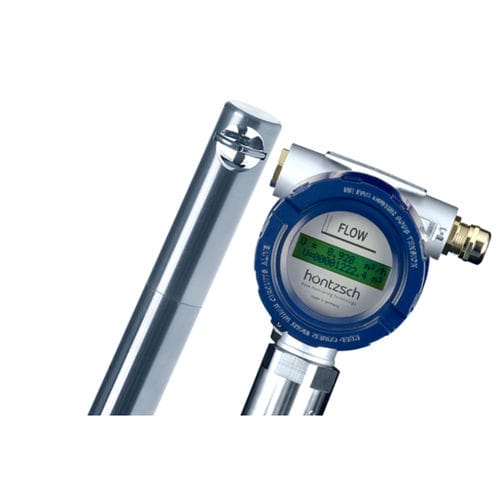

Vane flow sensor ZS25 ... ZG5 Ex-d / ATEX

volumefor liquidsgas

Cylindrical vane wheel sensor / insertion probe with probe diameter 25 mm and integrated transducer UFA in Ex-d explosion proof housing. Probe materials: stainless steel, titanium. Working temperature range up to +500 °C. Suitable for fixed measuring of actual flow velocity v [m/s] and flow rate V/t [m³/h, l/min] in clean gases and liquids, briefly also in particle-laden mediums. Output signals: analog output 4-20 mA limit value quantity pulse HART communication for configuration MEASURING RANGE 0.3 ... 120 m/s in air/gases 0.03 ... 10 m/s in water/liquids PRESSURE RESISTANCE up to 10 bar / 1 MPa overpressure MEDIA TEMPERATURE -40 ... +500 °C MEDIA gases / liquids DISPLAYED INDICATORS flow velocity, flow rate, volume IP PROTECTION TYPE IP65 (connection housing) TYPE OF PROTECTION ATEX category 1/2G and category 1/2D (zone 0/1, zone 20/21) SENSOR OUTPUT analog output 4-20 mA, limit value, quantity pulse, HART communication for configuration
