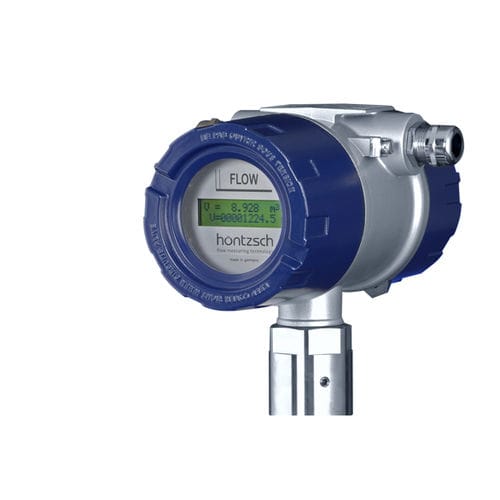

Thermal mass flow sensor TA Di Ex-d
massfor liquids

thermal mass flow sensor
thermal mass flow sensor
Add to favorites
Compare this product


Characteristics

Technology
thermal mass, mass
Applications
for liquids

Description

Measuring tube TA Di with inside diameter 16, 21.6, 27.2, 35.9 and 41.8 mm and transducer UTA in Ex-d connection housing. Material: stainless steel. Suitable for fixed measuring of standard flow rate NV/t [m³/h], mass flow rate [kg/h], standard volume NV [m³] and standard flow velocity Nv [m/s] in clean, condensate and particle-free gases. Output signals: 4-20 mA (flow-proportional) quantity pulse / limit value HART communication MEASURING RANGE 2.4 ... 12.350 l /min or 0.15 ... 741 m³/h PRESSURE RESISTANCE up to 16 bar / 1.6 MPa g. MEDIA TEMPERATURE -10 ... +140 °C MEDIA air, (compressed air), nitrogen, oxygen, methane, natural gas, argon, hydrogen, propane, butane, carbon dioxide, helium, sulphur hexaflouride DISPLAYED INDICATORS standard flow rate [m³/h] or [l/min], standard volume [m³], standard flow velocity [m/s] IP PROTECTION TYPE IP68 (connection housing) TYPE OF PROTECTION ATEX category 1/2G and category 1/2D (zone 0/1, zone 20/21) SENSOR OUTPUT analog output 4 ... 20 mA standard flow rate/mass flow; relay for quantity measurement or limit value, HART communication
