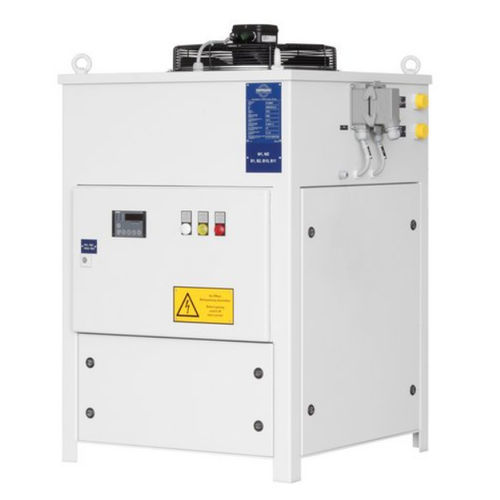

Water cooler WRK series

compactair-cooledwater-cooled

Open or closed water circle Soldered plate heat exchanger Compact HOFFMANN Water Coolers WRK are suited for all applications requiring cold water. The equipment produces cold water in open or closed circuits, which is then used in downstream heat exchangers. HOFFMANN Water Coolers are renowned for their high efficiency and compact design. A pump transports the water into the evaporator for cooling. The evaporator is a soldered plate heat exchanger which transfers the heat from the introduced water to ambient air via an air-cooled condenser.The water temperature is adjustable, with accuracies of ± 1°C. Standard HOFFMANN Water Coolers are designed for ambient temperatures of up to + 40°C. AREAS OF APPLICATION For all applications where cold water is required ADVANTAGES Low space requirement High energy efficiency High-quality components from leading manufacturers A quality product - MADE IN GERMANY OPTIONS Split version External installation of the cooler Water-cooled condensers Higher ambient temperatures up to 50 °C - Tropical version Particularly energy-efficient design; e.g. with frequency-controlled compressors Control accuracy up to ± 0.1 °C Housing colour (RAL) selectable Special voltages Adjustment to special and equipment regulations Multi-circuit systems for highly complex applications Further options possible
