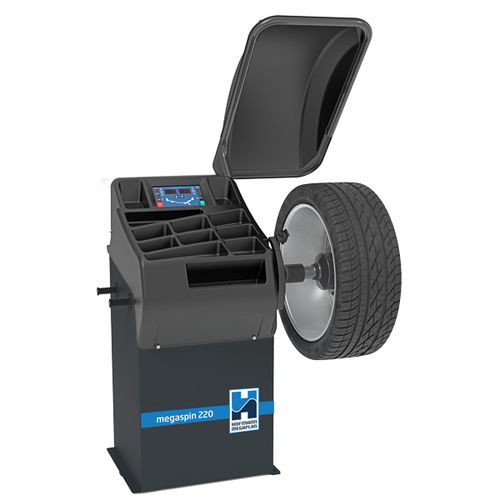

Car wheel balancer megaspin 220

automatic

The innovative 3D software that calculates steel rim width Virtual Sonar is the new software for a 3D wheel measurement. It enables detection of the rim width. This makes an actual sonar device or outside data entry arm unnecessary. The inner rim edge is detected thanks to the automatic gauge. Virtual Sonar then calculates the position of the external rim edge, according to the measured unbalance and tolerance. Virtual Sonar reduces balancing time. Avoids operator errors caused by manual data entries. And guarantees a balancing efficiency comparable to top of the range machines megaspin 220 ● Core of technology ● Automatic gauge to measure the distance and rim diameter. Clip to hold the adhesive weight. ● Virtual Sonar to calculate the rim width for steel rims. ● High Speed: For a medium sized tyre the measuring cycle is 4,5 seconds. ● Panel with touch system, innovative, simple and durable. Allows intuitive use of all machine functions. ● Easy AUTO SELECT automatically chooses the correct balancing program. The operator only has to move the gauge to the position, where he wants to attach the weights. ● ALU M programs offer unlimited choices for optimum weight positions for all modern alloy rims. ● Software programs for the tyre professional: SPLIT, OPT, ALU. ● Latest generation VDD Virtual Direct Drive – Super-fast and extremely accurate measuring system. ● ECO DRIVE: A medium sized wheel is accelerated to 100 rpm in less then 1 second. After that the assembly ‘free-wheels’, resulting in less energy consumption, less wear and tear, and less noise. ● Low balancing speed allows use without wheel guard. Also available with wheel guard.
