Incremental rotary encoder 19 serieshollow-shaftIP65industrial
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Construction
- hollow-shaft
- Protection level
- IP65
- Applications
- industrial
- Housing diameter
58 mm
(2.28 in)
Description

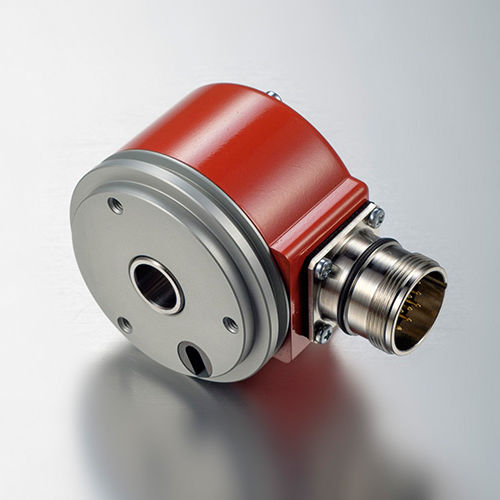

HIGH RESOLUTION BLIND HOLLOW SHAFT INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS
Resolution up to 50.000 pulses per turn
Easy to install, two mechanical options, shaft fixing by setscrew or clamp
External diameter 58 mm
Blind hollow shaft Ø 6, 8, 10, 12, 14 or 15 mm
Protection class IP65 according to DIN EN 60529
Anti-rotation system through flexible flange or pin torque support
Connection by cable (other cable lenght available) or industrial connector M12, M23
Female connector included
