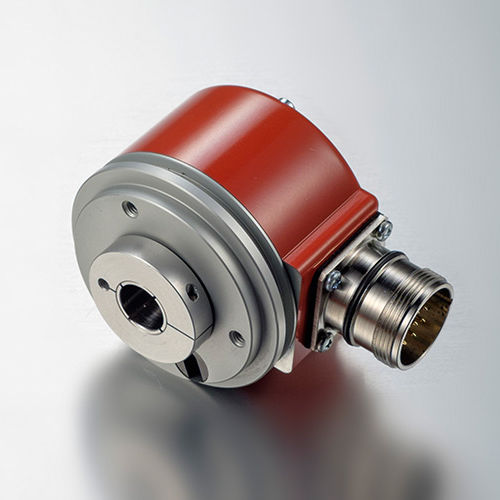

Incremental rotary encoder 59 serieshollow-shaftIP65industrial
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Construction
- hollow-shaft
- Protection level
- IP65
- Applications
- industrial
- Housing diameter
58 mm
(2.28 in)
Description
HIGH RESOLUTION HOLLOW SHAFT INCREMENTAL ENCODER FOR INDUSTRIAL APPLICATIONS
Resolution up to 50.000 pulses per turn
External diameter 58 mm
Hollow shaft Ø 10, 12 or 14 mm
Protection class IP65 according to DIN EN 60529
Shaft fixing through front or rear clamp
Anti-rotation system through flexible flange, pin torque support or anti-turn stick
Connection by cable (other cable lenght available) or industrial connector M12, M23
Female connector included
